4PI PLUS.2-GB Omni Directional Super Tweeter
Placing the omnidirectional 4Pi Plus.2 ribbon super-tweeter on top of your main, direct-radiating loudspeakers results in perfect spaciousness not found with any conventional loudspeaker. Equipped with flexible options for adjusting sensitivity and the lower cutoff frequency, the 4Pi Plus.2 can be seamlessly integrated with virtually any loudspeaker. It enables the sound to break free from the loudspeakers and fill the entire room. All without the need for additional amplification.
Perfect Spaciousness
Smooth High End up to 50kHz
Placing the omnidirectional 4Pi Plus.2 ribbon super-tweeter on top of your main, direct-radiating loudspeakers results in perfect spaciousness not found with any conventional loudspeaker, with a frequency range of 10,000 to 50,000 Hz.
Flexible Connections
No Additional Amplification Necessary
Equipped with flexible options for adjusting sensitivity and the lower cutoff frequency, the 4Pi Plus.2 can be seamlessly integrated with virtually any loudspeaker. It enables the sound to break free from the loudspeakers and fill the entire room. All without the need for additional amplification.
Fine Tuning
4PI

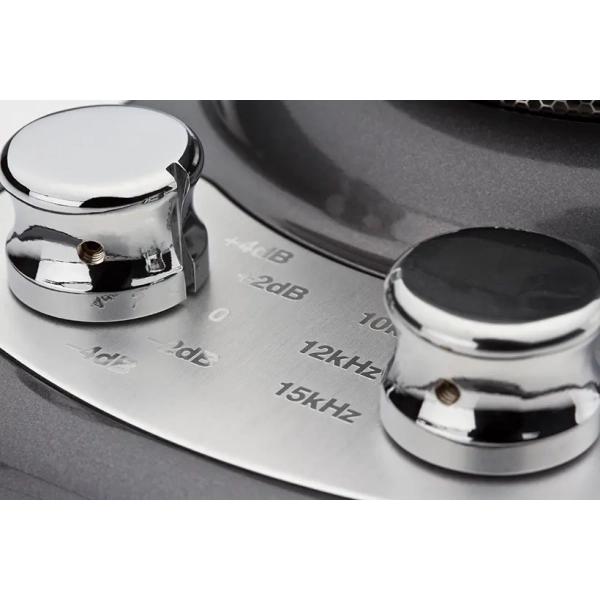

The 4Pi will match any speaker with an efficiency between 84 and 92dB with -4,-2, 0, +2 and +4dB settings. The crossover frequencies are 10, 12 and 15kHz and the frequency range is 10 to 50kHz.
360 degree omni-directional tweeter
4PI

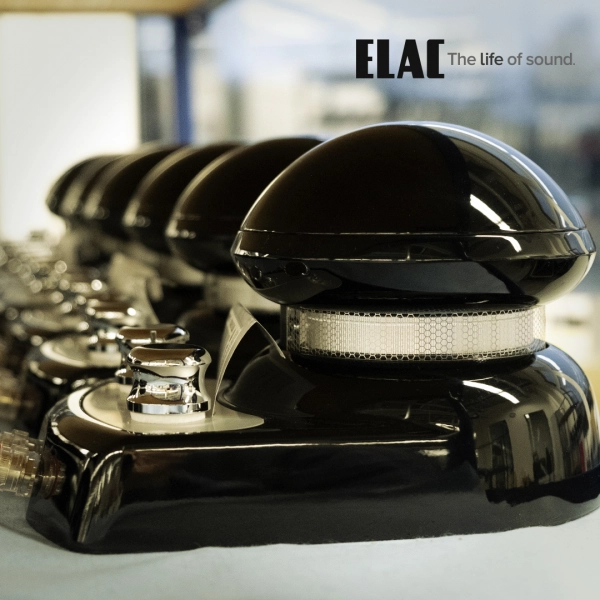

The 4Pi tweeter was developed by ELAC and members in 1984. The patented 4Pi tweeter became a symbol of high-quality tweeter reproduction.
| Speaker Type | Add-on high-frequency driver |
|---|---|
| Tweeter | 1 x 4Pi Plus.2 |
| Crossover Frequency | 10,000 Hz / 12,000 Hz / 15,000 Hz Adjustable |
| Frequency Response | 10,000 to 50,000 Hz |
| Sensitivity | 84 to 92 dB at 2.83 v/1m |
| Recommended Amplifier Power | 20 to 400 wpc |
| Nominal/Peak Power Handling | 400 / 600 wpc |
| Nominal Impedance | 6 Q; minimum 3.5 @ 10,000 Hz |
| Binding Posts | 5-Way Metal |
| Magnetic Shielding | No |
| Cabinet Finish | High-Gloss Black |
| Height | 5.6 in / 143 mm |
| Width | 5.9 in / 150 mm |
| Depth | 9.8 in / 250 mm |
| Net Weight (each) | 8.8 lb / 4.0 kg |
Explore the 4Pi Series
Step into impeccable acoustic experiences with ELAC 4Pi Series. Explore more products in the series.
