Elegant // BS312 Bookshelf
Elegant Bookshelf
BS312 Line 300 Bookshelf Speakers
Combining an ultra-compact design with an acoustically overwhelming performance.
Cabinet
Its high rigidity aluminum cabinet from low material thickness enables a unique cabinet shape. The almost complete absence of a front baffle allows the sound to radiate with total freedom. The audible result is room-filling, unfettered, utterly captivating.
Finish
The eye catches sight of the high-gloss lacquered cabinet and the aluminum parts of the drivers at the front. The woofer features a black anodized aluminum membrane with crystal-shape.

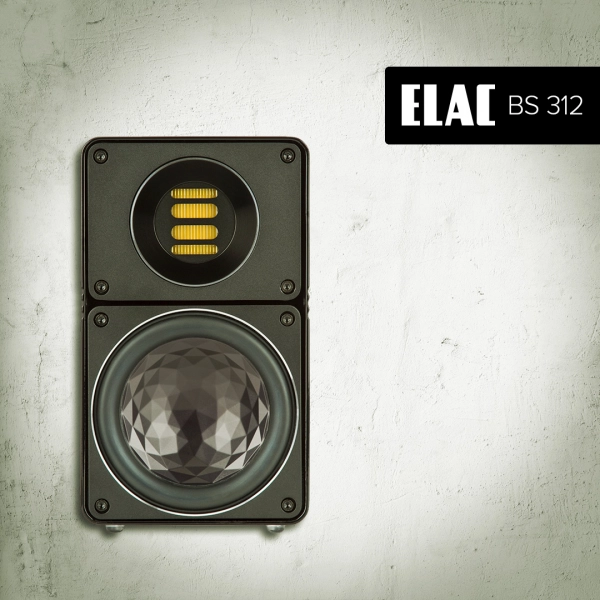

BS 312 Compact Bookshelf Loudspeaker
The Ultimate ELAC Classic.
No one could have predicted its subsequent success in 1993 when a small loudspeaker called the ELAC Elegant 305 hinted at the promise of great things to come. Aesthetics and sound in perfect unity—the secret is aluminum. It guarantees high rigidity from low material thicknesses and makes a unique cabinet shape possible. The near-complete absence of a front baffle allows the sound to radiate with total freedom. The audible result is a room-filling, unfettered, and utterly captivating sound.
Crossover
Van den Hul wiring
The crossover is equipped with premium components, lossless MKP film capacitors and MOX resistors. Generously sized air-coils have been manufactured to ensure lowest distortion figures thanks to saturation-free air-coils. The connection of crossover and drivers is done by Van den Hul wiring.
| Speaker Type: | 2-Way, Bass Reflex |
|---|---|
| Tweeter: | JET 5 |
| Woofer: | 115 mm AS-XR Cone |
| Crossover Frequency: | 3,200 Hz Hz |
| Frequency Response: | 42 to 50,000 Hz |
| Sensitivity: | 87 dB at 2.83 v/1m |
| Recommended amplifier power: | 50 to 150 W/channel |
| Nominal/peak power handling: | 70 / 100 W/channel |
| Nominal impedance: | 4 Ω; Minimum 3.4 Ω @ 280 Hz |
| Binding posts: | 5-way metal |
| Magnetic shielding: | No |
| Cabinet finish: | Gloss Black, Gloss White |
| Accessories included: | Metal grille |
| Dimensions (WxHxD): | 4.8 in / 123mm, 8.2 in / 208mm, 11.1 in / 282 mm |
| Net weight (each): | 15.9lb / 7.2kg |
