Carina // CC2414 Center Channel
Carina Center Channel
ELAC Carina Center Channel - CC 241.4
Welcome to a new dimension of dialogue clarity and audio precision with the ELAC Carina Center Speaker featuring the remarkable JET tweeter. Designed to excel in delivering crisp, articulate dialogue, this center speaker takes center stage in home theater setups. The JET tweeter, renowned for its precision and fidelity, ensures that every spoken word is conveyed with exceptional detail and nuance. Elevate your cinematic experience with the ELAC Carina Center Speaker, where cutting-edge technology meets acoustic excellence, creating a focal point for dialogue performance that brings your favorite movies and TV shows to life with unparalleled clarity and authenticity.
JET Air Motion Transformer Tweeter
Delivering true high-definition sound, ELAC’s JET tweeters enthrall with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a wider frequency range. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.

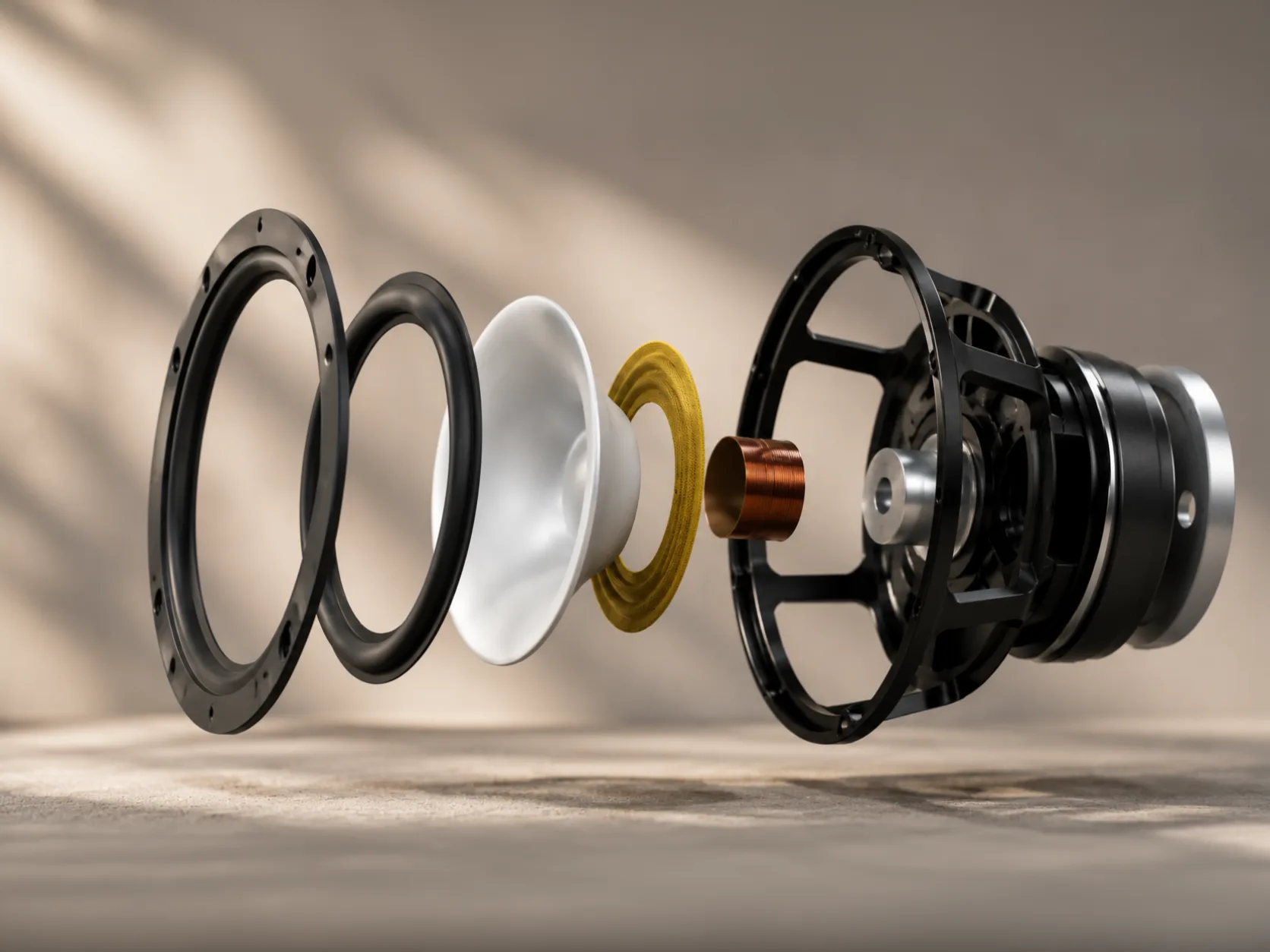

Compound Curvature Aluminum Woofer
To complement the prowess of the JET tweeter and ensure a smooth shift from the woofer, an innovative compound curvature cone has been engineered. Its purpose is to effectively manage cone breakup, extending it far beyond the woofer's operating range. Further enhancing the speaker's capabilities, a sizeable voice coil and an oversized vented pole piece magnet have been integrated, delivering exceptional bass dynamics and a robust, powerful performance.
Acoustically Optimized Cabinets
Each Carina enclosure undergoes meticulous engineering, featuring sturdy MDF outer walls and an elegant satin painted finishes. Strategically positioned internal bracing enhances the cabinet's structural integrity, minimizing vibrations that could otherwise distort the sound and introduce unwanted coloration.
Carina
Design Goals
• Develop new driver designs to offer differentiation
• Give some shape and add material to beautify
• Use die cast baskets with diamond cut but remove rectangular metal around driver
• Use JET Technology
• Maintain a family look
• Preserve the traditional look but modernize it
Carina
Results
A refined design, yet traditionally Elac
Carina
The Benefits
• Jet Folded Ribbon Tweeter offering wide dynamic range
• Bi-wiring configuration to enhance midrange
• Die cast bottom plate with integrated double flanged down-firing bass port
• Convex baffle shape reducing reflections
Aluminum Woofer
Compound Curvature Cone
Air Motion Tweeter
JET
Downward Firing
Port

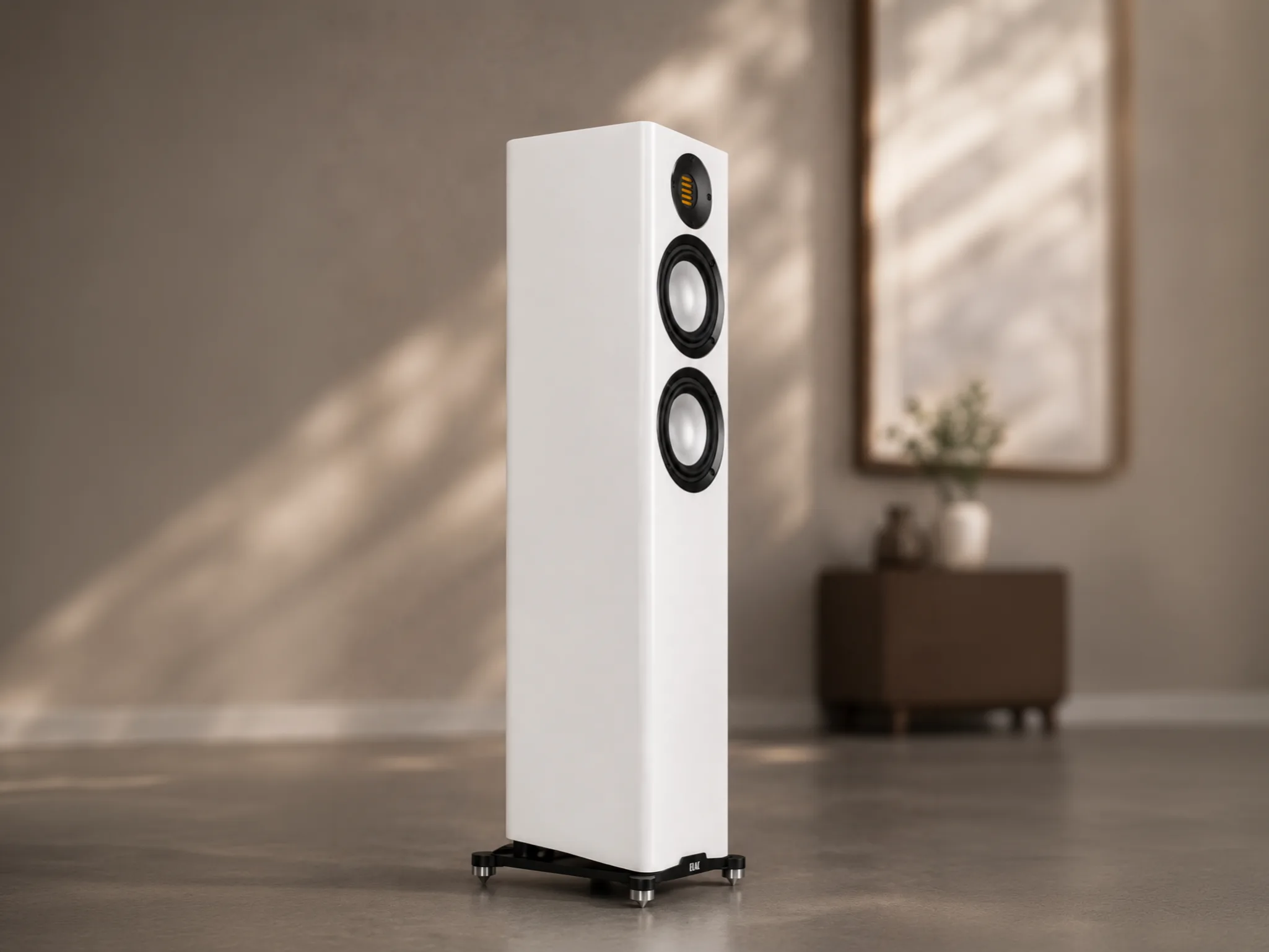

Floor standing models have rear and down firing ports to deliver incredible low end extension
| Type: | 3-way Vented box |
|---|---|
| Woofer: | 1 x Aluminum cone 5-1/4 |
| Midrange: | 1 x Aluminum Cone 5-1/4 |
| Tweeter: | JET folded ribbon |
| Crossover frequency: | 100Hz / 3kHz |
| Frequency range (IEC 268-5): | 50Hz - 30kHz |
| Sensitivity: | 87dB/2.83V/1m |
| Recommended amplifier power: | 30 to 200 wpc |
| Nominal | Minimal Impedanz: | 6 Ohm / 4,8 Ohm |
| Peak power handling: | 120W |
| Nominal | Minimum impedance: | 6 Ohm / 4.8 Ohm |
| Finishes: | Satin Black, Satin White |
| Net Weight (each): | 22.44 Ibs / 10,17 kg |
| Dimensions (HxWxD): | 08.34 x 24.41 x 7.79 (212 x 620 x 198 mm) |
