Debut ConneX // DCB41 Powered Speaker

Debut ConneX Powered Speaker

Find the Nearest Dealer

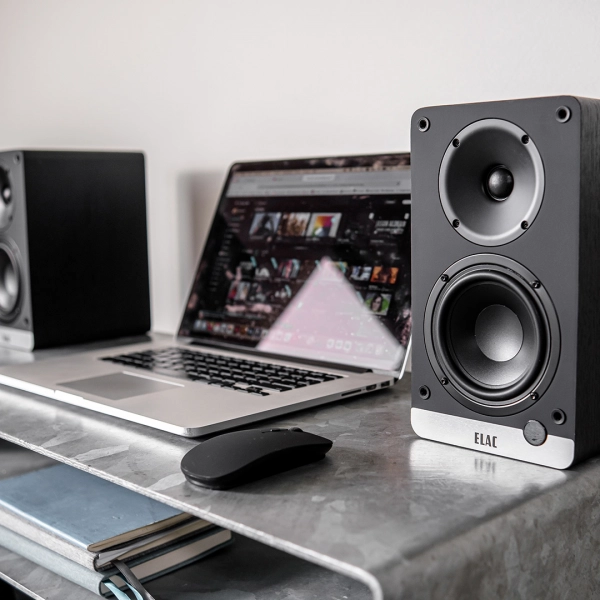

The ELAC ConneX DCB41 Powered Monitor Speakers

The Debut ConneX DCB41 powered bookshelf speakers define how simple it can be to deliver a premium audio experience for both, movies and music. Featuring a wide variety of inputs (HDMI ARC, Analog/Phono, Optical, USB and Bluetooth), and matched with optimally designed drivers and amplifiers, the DCB41 delivers a truly exceptional audio experience.

Simply Connected

ELAC's DCB41 with its versatile inputs are designed to a connect to a variety of sources without additional equipment, resulting in Premium Audio Simplified

Great Things Come in small Packages

With a powerful built-in amplifier, the Debut ConneX delivers outstanding sound in a small footprint. Offering an unprecedented number of connection options—USB Audio, HDMI eARC, Bluetooth AptX, Phono Preamp, Analog, and Optical Inputs—the Debut ConneX makes it easy to add high- fidelity audio just about anywhere you need it.

Premium Audio

Simply Connected

With a powerful built-in amplifier, the Debut ConneX delivers outstanding sound in a small footprint. Offering an unprecedented number of connection options—USB Audio, HDMI eARC, Bluetooth AptX, Phono Preamp, Analog, and Optical Inputs—the Debut ConneX makes it easy to add high- fidelity audio just about anywhere you need it.

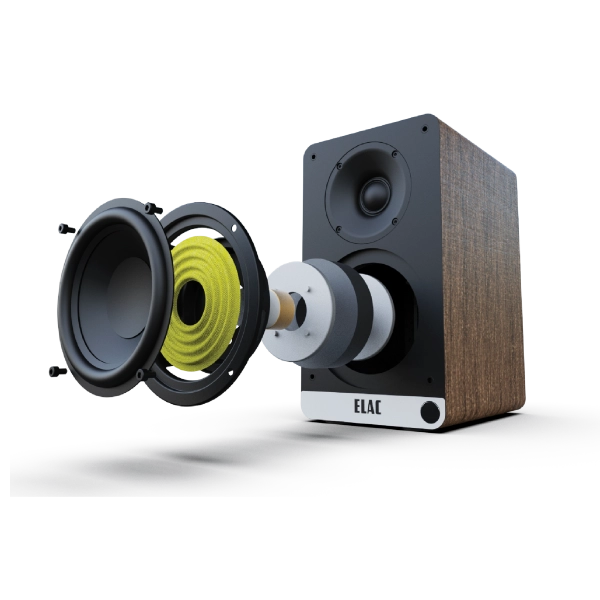

Custom Woofer

Wide Surround

A long excursion woofer with wide-rolled surround provides increased output for added bass extension

Enhanced Bass Response

XBass

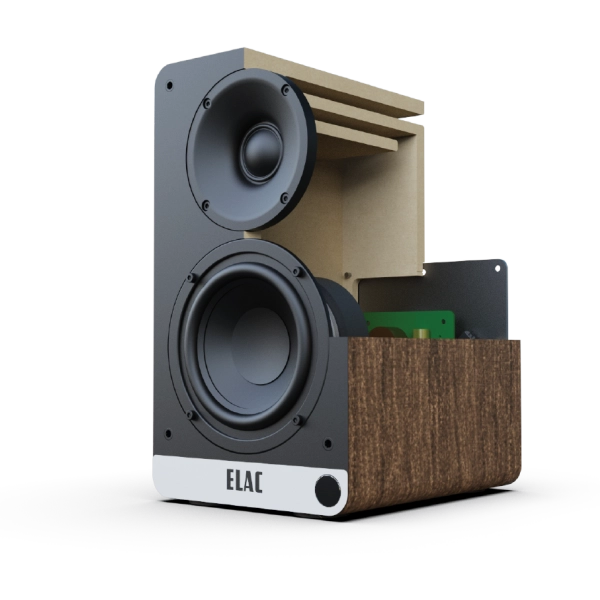

ConneX includes ELAC’s proprietary XBass Enhancer, providing a better overall bass extension and output (can be turned off). For better lower frequency extension and to minimize ventilation noise, the bass reflex port on the DCB41 is directed to the rear, in an “S” configuration.

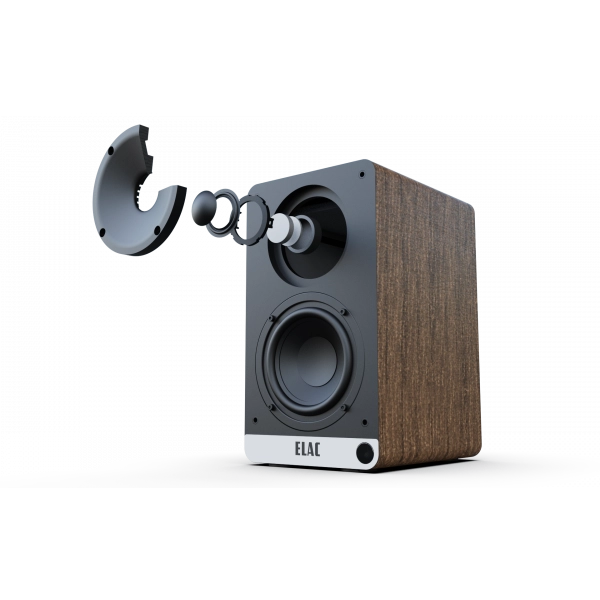

Custom Waveguide

Tweeter

A custom designed waveguide controls dispersion and directivity improving overall imaging and balance.

USB Connection

High-Res 96Khz 24-bit

Connect a USB cable from your Windows or Mac computer to the USB input on the DCB41, and you can enjoy high-resolution audio playback up to 96kHz 24-bit. The speakers’ volume can be controlled by the computer’s volume control.

Flexible Connections

Plug in (practically) anything

Connect to just about anything with a wide number of input options including: HDMI ARC, USB Audio (PC/Mac), Bluetooth (aptX), Digital/Optical, and Analog/Phono.

HDMI ARC/CEC

Control with your TV Remote

Connect the HDMI ARC output from your compatible television and your TV’s remote control will control the volume of the Debut Connex speakers.

Phono Preamp

Built-In

The switchable built-in phono pre-amp allows you to connect just about any turntable directly to the speakers using standard RCA cables. A ground screw is also included. Turn off if you prefer not to use.

Bluetooth

aptX

Playback your favorite music or podcast from your phone, tablet or computer using Bluetooth. To ensure the best possible quality the DCB41’s feature aptX technology delivering true CD quality audio from compatible phones.
SPEAKER TYPEBASS REFLEX / POWERED
AMPLIFIER POWER50 WATTS X 2
TWEETER¾” Soft Dome
WOOFER4-1/2” Polypropylene
FREQUENCY RESPONSE66Hz-25,000Hz (Anechoic)
FREQUENCY RESPONSE50Hz—25,000Hz (In-Room)
Total Harmonic Distortion (THD) (less than or equal) 0.20%
Signal to Noise ratio (S/N) >= (greater than or equal) 90 dB
MAXIMUM SYSTEM OUTPUT102dB @ 1m
INPUTHDMI (ARC) X 1
INPUTLINE / PHONE (SWITCHABLE) X 1
INPUTUSB (96kHz 24-Bit) x1
INPUTOPTICAL X 1
INPUTBLUETOOTH (AptX)
OUTPUTSSUBWOOFER and SPEAKER
REMOTE CONTROLYES (INFRARED)
FIRMWARE UPGRADEABLEYes (via USB)
VOLTAGE120-240 Volts)
DIMENSIONS (W XHXD)5-1/2” x 9-5/8” x 8”
WEIGHT7.6lbs (Powered), 6.3lbs (Passive)
ELAC ConneX DCB41 Sales Sheet Version: 1.0.0 (English) Download
ELAC ConneX DCB41Owners Manual Version: 1.0.0 (English) Download
ELAC ConneX DCB41 Owners Manual - Mandarin Version: 1.0.0 (English) Download
ELAC ConneX DCB41 Firmware Version: 8.0.0 (English) Download
