Vertex I // IC-V81 In-Ceiling Speaker
Vertex I In-Ceiling Speaker
Vertex I IC-V81 In-Ceiling Speakers

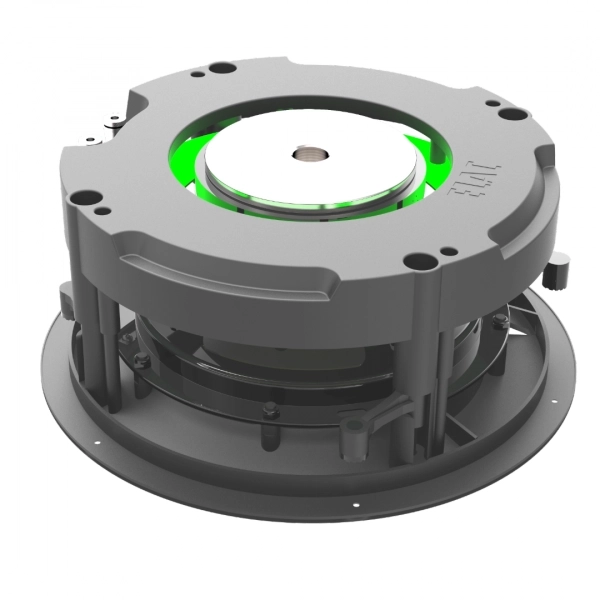

8" Straight-Firing, In-Ceiling Speaker
With a slim profile, the easily installed Vertex in-ceiling speakers expand the line of our Integrator Series of custom products. Keeping our philosophy of providing our core technologies across product lines, the Vertex series of speakers will match and complement bookshelf, floorstanding, on-wall, and in-wall products.
VERTEX SERIES
IN-CEILING SPEAKERS
Slim Profile

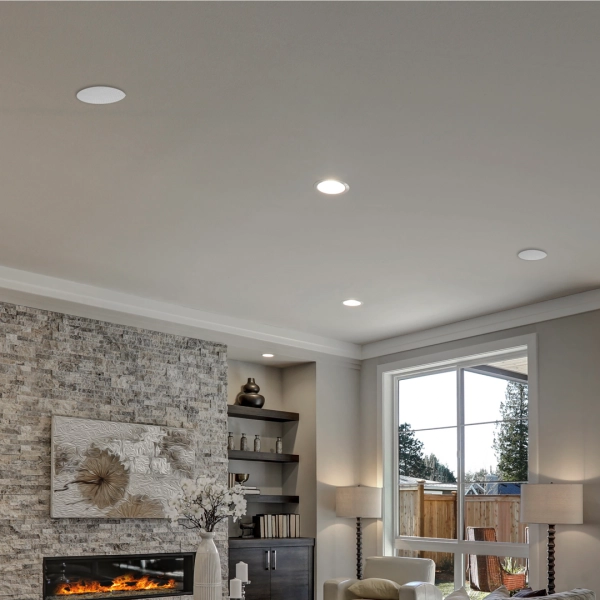

A slim profile paintable magnetic grill allows for the speaker to virtually disappear in the room
VERTEX SERIES
IN-CEILING SPEAKERS
Custom Silk-Dome Tweeter
Custom silk dome tweeters have been developed for low mass and smooth, extended high frequency response
Custom-designed Woofers with Polypropelyne Cone
Polypropylene is employed due to its improved internal damping and smooth high frequency roll-off
Intricate Crossover
A custom multi-element crossover with audio-grade components is implemented to ensure smooth transition between the drivers
| Speaker type | 2-way, rear side open |
|---|---|
| Tweeter | 1-inch soft dome |
| Woofer | 8-inch polypropylene cone |
| Crossover frequency | 2,800 Hz |
| Frequency response | 40 to 20,000 Hz |
| Sensitivity | 90 db at 2.83 v/1m |
| Recommended amplifier power | 30 to 120 Watts |
| Nominal/peak power handling | 50/120 Watts |
| Nominal impedance | 6 Ohm |
| Finish | Black baffle/White grille |
| Grille | Metal magnetic / Paintable |
| Accessories included | Cutout template, manual |
| Dimensions (diameter) | 11.22 in / 285 mm |
| Cut-out (diameter) | 10.00 in / 254 mm |
| Mounting depth | 4.48 in / 114 mm |
