In-Ceiling Subwoofer dual 6.5"

This Vertex subwoofer is designed to fit between standard ceiling joists. The port coupling ring allows for the trim out to match ELAC’s IC-V31 speaker with either a roundor square grill. When matched with the IC-V31 speakers

in a ceiling, the installation becomes complimentary with contemporary small aperture ceiling lights.

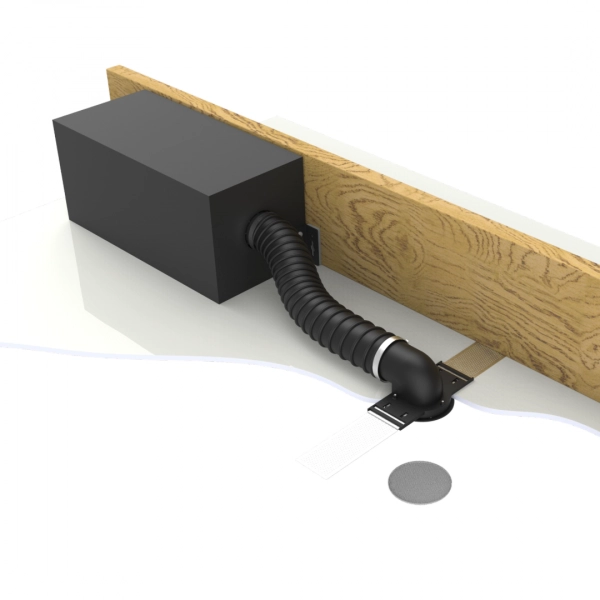

FLEXIBLE PORT TUBE

The port tube is flexible enough to allow versatile installation, but rigid enough to minimize wind turbulence which can result in port noise

6.5” DUAL VOICE COIL SPEAKER

The subwoofer includes a 6.5” dual voice coil subwooferto deliver an incredible amount of low frequency response in a small form factor. This subwoofer is sonically matched to the IC-V31 to create a balanced system, however, canbe used to compliment any speaker to reinforce low frequency response.

IN-CEILING SUBWOOFER

PASSIVE

Our in-ceiling subwoofer is designed to discreetly install ceiling joists and trim out to match small aperture lighting. Low frequencies are delivered by way of one 6” DVC woofer in a bandpass enclosure that vents out through a port opening. The end result is low frequency reinforcement in a form factor that works with interior design.

IN-CEILING SUBWOOFER

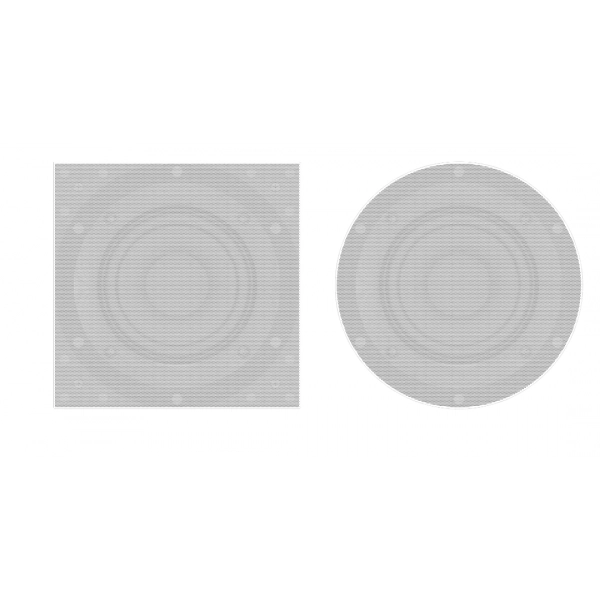

Grilles

Square grill and round grilles are available to cosmetically match lighting
Woofers6.5
Frequency Response35Hz - 125Hz + 3dB
Sensitivity87 db @ 2.83V/1m
Crossover125 Hz @ 12db per octave
Impedance6 ohms nominal
Frequency Response20 Hz - 20 KHz
Max Power Input150 watts
Height9.06 in / 230 mm
Width19.49 in / 495 mm
Depth9.06 in / 230 mm
Flexible Port Tube Diameter76.2mm (3
Vertex in-ceiling subwoofer IC-VS61 Version: 1.0.0 (English) Download
