Integrated Amplifier

Integrator Series 16 Channel Multi-Zone Amplifier

Each ELAC Multi-channel amplifier uses a modular design and efficient Class D amplifiers. The 8 Channel Amplifier delivers up to 100 Watts per channel, while the 12 Channel delivers up to 75 Watts and the 16 Channel delivers up to 75 watts.

Full Matrix Audio Routing

Route any input to any output. Our WEB based GUI makes customizing the amplifier simple. 8, 12, or 16 Channels of Premium Power

Configurable Audio Outputs

All of our multi-channel amplifiers feature assignable outputs (8-Channel 4 Outs), (12/16- Channel 8 Outs) allowing for extremely flexible projects. Power a room off in-ceiling speakers with the built-in amplifiers and assign one of the outputs to a powered subwoofer in the same room. You can even apply high- pass filters to the in-ceiling/in-wall speakers

Advanced DSP

Our advanced DSP allows for great flexibility when setting up each zone. A full Parametric Equalizer can be used for each output or simply use one of our presets for ELAC speakers to simplify the setup.

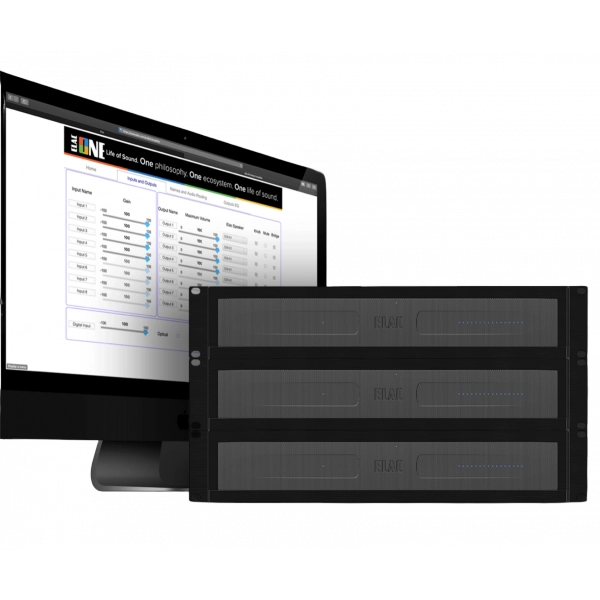

WEB GUI

Our WEB GUI allows for easy setup and tuning of the amplifier. A status screen shows the current state of each channel along with both input and output levels for each channel. Settings can be saved for easy replication of projects.

DSP

Matrix Amplifers

Our advanced DSP and CPLD provides full audio matrixing, allowing any input to output.

Our WEB GUI allows for easy setup and tuning of the amplifier. A status screen shows the current state of each channel along with both input and output levels for each channel. Settings can be saved for easy replication of projects.

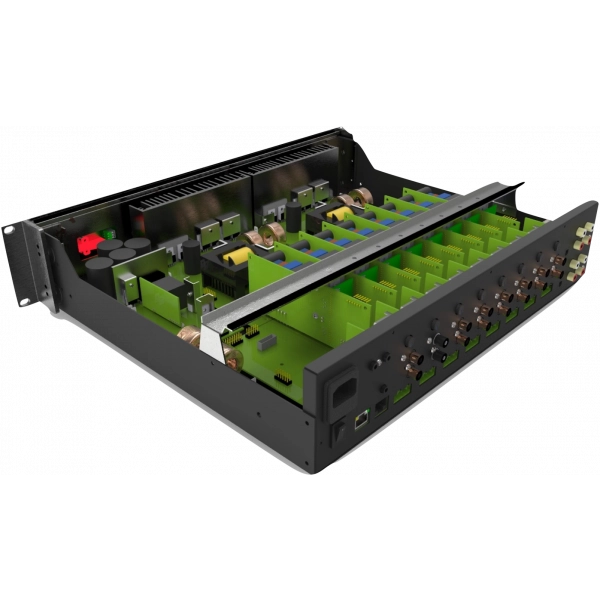

Advanced Architecture

Reliabiltiy

Elac’s multi channel amplifiers are an advanced architecture to allow flexibility and continuous safe operation.

Each zone has 16 bit micro-processors to monitor voltages, current and temperature.

Sophisticated monitoring system to ensure continuous operation. Monitors 10 thermal points, with 10 Microprocessors, 3 DSP and 1 CPLD to provide a rich reliable experience

Sophisticated Network

Architecture

Sophisticated monitoring system to ensure continuous operation.
Monitors 10 thermal points, with 10 Microprocessors, 3 DSP and 1 CPLD to provide a rich reliable experience

Input Channels..16
Output Channels..16
Assignable outputs8
Power output per channel @ 4W..50
Power output per channel @ 8W.50
Bridged Output power 100
Topology.Discrete Class D
Frequency response.20 Hz - 20 KHz
Dimensions Width x Length425.45 mm x 346.08 mm
Rack Spacing.2 RU
IP commands available (third party control)..Control4, Crestron
Integrator Multi Channel Amplifiers Owners Manual Version: 1.0.0 (English) Download
Integrator Multi Channel Amplifiers Sales Sheet Version: 1.0.0 (English) Download
Integrator Multi Channel Amplifiers Protocol Version: 1.0.0 (English) Download
Integrator ISAMP1650 Control4 Driver Version: 1.0.0 (English) Download
Integrator ISAMP1650 Firmware Version: 0.7.0 (English) Download
Integrator ISAMP1650 Firmware Version: 0.6.8 (English) Download
