Vertex III // IW-VJ63M In-Wall Speakers
Vertex III In-Wall Speakers
Vertex III - Dual 6.5" Sealed In-Wall Speaker with JET (Each)

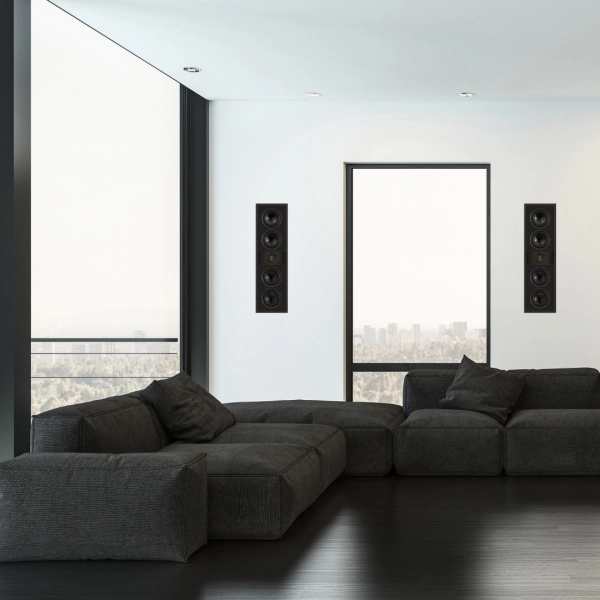

Using the same technology and materials as the highly acclaimed Vela speaker line, the Vertex Series III combines the aesthetics of an architectural speaker with the performance and dynamics of the Vela series. The easily installed Vertex Series III speakers utilize the same components throughout the series to ensure a perfect sonic match across the line. Keeping with the philosophy of our famous Jet tweeter sound, Vertex series III speakers will complement any environment.
Bringing Core Technology
To Custom Audio
JET Folded Air-Motion-Transformer
ELAC’s JET tweeters enthral with its lightning-fast response and wide dynamic range, offering minimal distortion and lots of headroom. A deep spheroid Waveguide is used to improve directivity control and efficiency.
Custom-designed Crystal Membrane Aluminum Woofer
ELAC’s unique Crystal Membrane woofer is extremely rigid, yet light weight. This woofer is specifically designed to keep up with the speed of the JET Tweeter while delivering detail in low frequency response.
ELAC’s JET tweeters enthral with its lightning-fast response and wide dynamic range, offering minimal distortion and lots of headroom. A deep spheroid Waveguide is used to improve directivity control and efficiency.
Custom-designed Crystal Membrane Aluminum Woofer
ELAC’s unique Crystal Membrane woofer is extremely rigid, yet light weight. This woofer is specifically designed to keep up with the speed of the JET Tweeter while delivering detail in low frequency response.

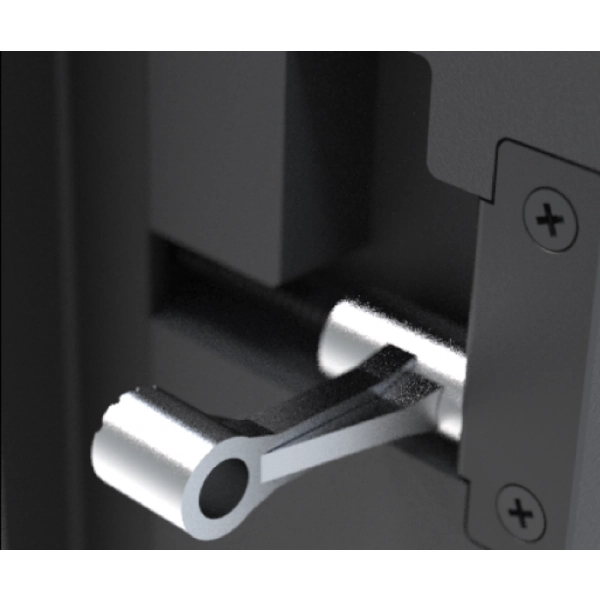

Aluminum
Dog Legs
Custom designed aluminum dog legs provide superior strength and ensure no vibrations when mounted in wall
Removable painted wood baffle to conceal all hardware
Removable painted wood baffle to conceal all hardware
The inimitable JET tweeter
JET 5
ELAC’s JET tweeter is used throughout our loudspeaker range. This high-frequency driver enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a distinctly wider frequency range than conventional dome tweeters. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.
JET Technology
ELAC's Air Motion Tweeter
Features
Air Motion Transformer principle
Linear Frequency response > 50 kHz
Extended lower frequency range
Efficiency 92 dB / W / m
Improved signal accuracy
Ultra fast transient response - detail resolution
Air Motion Transformer principle
Linear Frequency response > 50 kHz
Extended lower frequency range
Efficiency 92 dB / W / m
Improved signal accuracy
Ultra fast transient response - detail resolution
AS-XR Technology
Crystal Membrane
Aluminum Sandwich Membrane with Extended frequency range
The eye-catching surface of the crystal membrane is more than just an attractive design feature.
Increased stiffness through crystal shape of aluminum cone
Extended frequency range (XR), smooth roll-off
Excellent large signal behaviour
Minimized VAS, (lot of bass out of small cabinets)
The eye-catching surface of the crystal membrane is more than just an attractive design feature.
Increased stiffness through crystal shape of aluminum cone
Extended frequency range (XR), smooth roll-off
Excellent large signal behaviour
Minimized VAS, (lot of bass out of small cabinets)
| Speaker type | 21/2-way, sealed cabinet |
|---|---|
| Tweeter | Jet Folded Ribbon |
| Woofers | 2 x 6” Active & 2 x 6” Passive Crystal Aluminum Sandwich Cones |
| Crossover frequency | 450 / 2,400 Hz |
| Frequency response | 42 to 50,000 Hz |
| Sensitivity | 88 db at 2.83 v/1m |
| Recommended amplifier power | 40 to 200 Watts |
| Nominal/peak power handling | 120/160 Watts |
| Nominal impedance | 4 Ohm |
| Finish | Black baffle/White grille |
| Grille | Metal magnetic / Paintable |
| Accessories included | Cutout template, manual |
| Dimensions | H: 33.54 in / 852 mm W: 9.76 in / 248 mm |
| Cut-out | H: 32.68 in / 830 mm W: 8.9 in / 226 mm |
| Mounting depth | 3.82 in / 97.0 mm |
