Concentro // S507 Floorstand

Concentro Floorstand

Find the Nearest Dealer

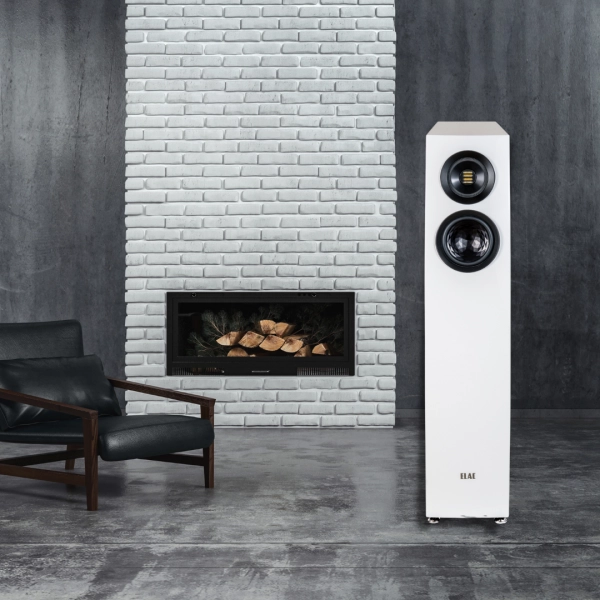

Concentro S 507 Floorstanding Speaker

Concentro is synonymous with the ultimate in workmanship, design, and sound.The Concentro S 507 retains all the features and benefits of the larger Concentro loudspeakers but creates its own unique visual impact.

MODERN HYBRID DESIGN

The progressive design elements from the Concentro Series combined with the clean lines of the Vela Series to create a strong visual presence. The trapezoid basic shape, convex shaped baffle, and gently angled cabinet combine in a strikingly organic way to create a strong visual statement.

PATENTED

The extensive list of patented features and the revised woofer magnet system guarantee superlative sound. The effortless performance can be adjusted to suit the room acoustics. Close your eyes and you’ll instantly forget you’re listening to a compact speaker ... all you hear is music.

COLOURS

The Concentro S507 is available in black and white high-gloss finishes .

Meet Concentro S

High-End on High Heels.

Concentro is synonymous with the ultimate in workmanship, design, and sound. The Concentro S 507 retains all the features and benefits of the larger Concentro loudspeakers but creates its own unique visual impact.Its exterior is a perfect symbiosis of the extravagant design of the Concentro and the clean lines of the VELA Series. The trapezoid basic shape, wraparound baffle, and gently angled cabinet combine to convey a natural, low-key appearance. The striking bottom assembly achieves a ‘high-heel’ effect, imparting a sense of elegance and stability. Incidentally, it also guarantees an exceptionally sound footing.

Crystal Membrane Driver

Engineered for Low Distortion

Based on ELAC’s Aluminum-Sandwich AS Technology. Resembling the surface of a large crystal, the aluminum-foil stamping stiffens the aluminum dome, diminishing resonances and minimizing coloration, while improving power handling and dynamics. The voice coil design of the drivers results in an expanded frequency range, and driver surround allows for longer cone excursions for truly prodigious volume and lowest distortion, a unique engineering achievement for a driver of its size.

JET 5 Tweeter

Lightning-Fast Response and Wide Dynamic Range

Delivering true high-definition sound, ELAC’s JET 5 tweeter enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom, and a distinctly wider frequency range than conventional dome tweeters. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise for its transparent and effortless sound image.
Height1220 mm with Spikes/ Washer
Width270 mm with Spikes/ Washer
Depth380 mm with Spikes/ Washer
Weight37 kg
Type4-Way, bass reflex
Woofer4 × 150 AS mm ⌀ cone
Low Midrange1 × 180 mm ⌀, AS-XR cone
High Midrange1 × 50 | 130 mm ⌀ AL cone
Tweeter1 x JET 5c
Crossover frequency120 | 400 | 2600 Hz
Nominal/peak power handling240 W
Minimum impedance3,0 Ω bei 360 Hz
Peak power handling300 W
Frequecny Range24 - 50000 Hz
Sensitivity88 dB / 2,83 V/m
Suitable for amplifiers from ... to Nominal impedance4-8 Ω
Nomial impedance4 Ω
Recommended amplifier power60 - 500 W/channel
FinishesBlack High Gloss, White High Gloss
AccessoriesBi-Wiring-Set, Gloves, Spike-Set, Washer
Concentro S507 Sales Sheet Version: 1.0.0 (English) Download
