WS Line // WS 1665 On-Wall Speakers
WS Line On-Wall Speakers
2.5-Way On-Wall Speaker with JET Tweeter
Designed like a 2.5-way bass reflex standing box for wall mounting, it provides an audiophile solution without the usual positioning problems. With two woofers and the recognized JET 5 tweeter, this is the speaker for larger listening rooms or higher listening volume.
Very similar in sound to the WS 1645, but even more powerful in the bass range, the WS 1665 can also be used in combination as a classic center speaker.
Meet the WS 1665 On-Wall Speaker
Audio reproduction without compromises
Despite their shallow cabinet depth of just 84 mm, the WS Series uses the very latest chassis technology to deliver full-scale sound with deep bass. If you want that little bit extra, the WS 1665 equipped with two woofers is the loudspeaker of choice for large listening rooms or if higher playback levels are required. Offering a very similar sound to the WS 1645, but with even greater bass impact, the WS 1665 can also serve as a traditional center loudspeaker in combination with other models.

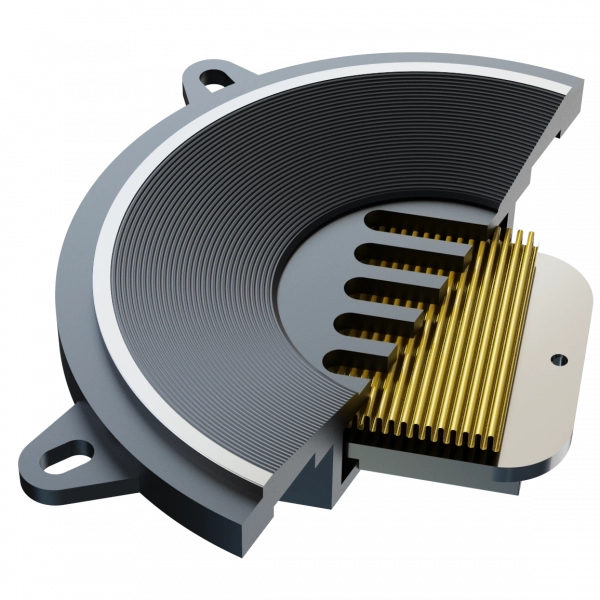

Jet Tweeter
Air Motion Technology for Extended, Smooth Response.
ELAC’s JET tweeter is used throughout our loudspeaker range. This high-frequency driver enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a distinctly wider frequency range than conventional dome tweeters. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.
Designed and manufactured in Kiel, Germany.

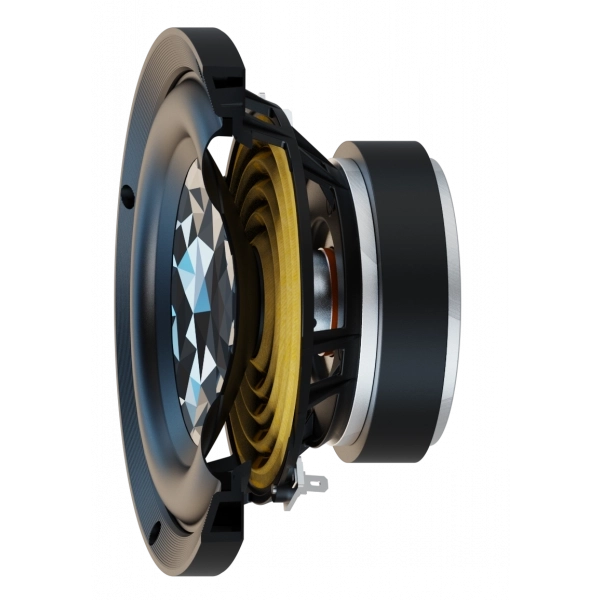

AS-XR Crystal Membrane Woofer
Smoother Excursion for Extended Frequency Range.
AS-XR Aluminum Sandwich Membrane with Extended Frequency Range.
The The eye-catching surface of the crystal membrane is more than just an attractive design feature.
• Increased stiffness through crystal shape of aluminum cone
• Extended frequency range (XR), smooth roll-off
• Excellent large signal behaviour
• Minimized VAS, (lot of bass out of small cabinets)
Family Sound Signature
Freely Combine Different Models
Although the various WS lines feature different chassis technologies, their exterior appearance is pleasingly consistent. And what looks good together also sounds good together - the ‘family sound signature’ gives you the freedom to combine different models from the WS lines as you please.
| Enclosure type: | 2.5-way, bass reflex |
|---|---|
| Tweeter: | 1 x 25 mm |
| Woofer: | 2 x 115 mm AS cone |
| Crossover frequency: | 600 / 3,400 Hz |
| Frequency response: | 50 to 30,000 Hz |
| Sensitivity: | 89 dB / 2.83 V / m |
| Recommended power input: | 20 - 180 W / channel |
| Nominal impedance: | 5 Q; Minimum: 4.3 0 @ 58 Hz |
| Wall mounting: | 5 key holes |
| Magnetically shielded: | No |
| Cabinet Finish: | White silk matte; Black silk matte |
| Grille: | Magnetic White or Black Fabric Grill |
| Height: | 25.6" / 650 mm |
| Width: | 8.7" / 220 mm |
| Depth: | 3.9" / 98 mm |
| Net Weight: | 7.3 kg |
