Vertex III // SB-VJ41L Soundbar
Vertex III Soundbar
Vertex III SB-VJ41L 3-Channel Passive Soundbar
ELAC’s Vertex III passive soundbars leverage technologies from our award winning Vela series of loudspeakers. Our legendary JET AMT technology paired with our Crystal Cone bass drivers delivers a sonic experience normally found on premium bookshelf speakers.
Slim Elegant Design
Vertex III offers the excitement of a premium speaker system in a zero footprint design that looks as good as it sounds.

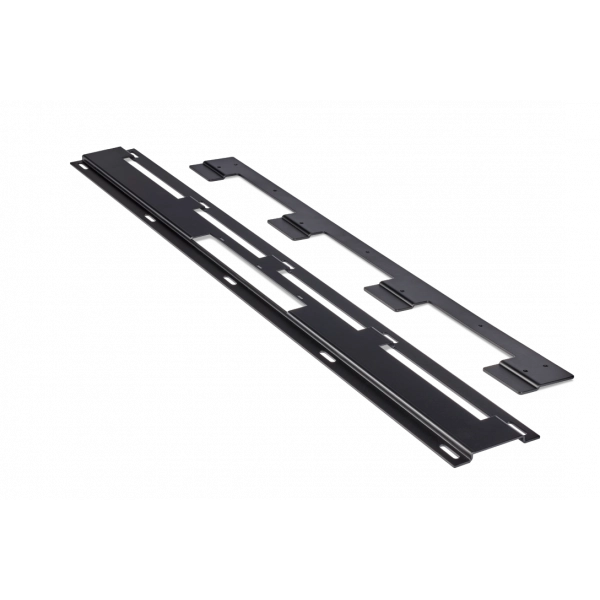

Adjustable Bracket
After wall mounting, the design of the bracket facilitates a 2" left and right adjustment, allowing the installed to easily enter the soundbar to the television.
JET 5 Tweeter
Engineered and designed in Keil, Germany, the JET 5 Air Motion Transformer tweeter offers a wide frequency response (Up to 50kHz), low distortion, and remarkable clarity in reproducing the high-frequency spectrum, contributing to a more immersive and detailed audio experience for listeners.
Aluminum Sandwich Woofer
This specialized construction brings forth a myriad of benefits, starting with its rigidity and lightweight nature. By leveraging the inherent qualities of aluminum, these woofers effectively minimize unwanted resonances and distortions, ensuring a remarkably clear and accurate sound reproduction.
Vertex III
When only the finest will do
With our soundbars, the performance of your favorite movies and music is enhanced with premium audio. The dedicated center speaker ensures that dialogue from TV shows or movies will be heard loud and clear while left/right channels deliver a powerful experience to give you an immersive feeling when listening.
Bracket
Adjustable
After wall mounting, the design of the bracket facilitates a 2" left and right adjustment, allowing the installed to easily enter the soundbar to the television.
AS Technology
Crystal Membrane
The The eye-catching surface of the crystal membrane is more than just an attractive design feature.
Increased stiffness through crystal shape of aluminum cone
Extended frequency range (XR), smooth roll-off
Excellent large signal behaviour
Minimized VAS, (lot of bass out of small cabinets)
JET Technology
JET 5
Air Motion Transformer principle
Linear Frequency response > 50 kHz
Extended lower frequency range
Efficiency 92 dB / W / m
Improved signal accuracy
The inimitable JET tweeter
JET 5
ELAC’s JET 5 tweeter is used throughout our loudspeaker range. This high-frequency driver enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a distinctly wider frequency range than conventional dome tweeters. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.
| Speaker Type | Passive Radiator |
|---|---|
| Tweeter | JET Tweeter x 3 |
| Woofer | 4 |
| Frequency Response | 60Hz - 35000Hz |
| Crossover Frequency | 2800Hz |
| Sensitivity | 86db @ 2.83 v/1m |
| Max Power Input | 100 Watts |
| Nominal Impedance | 6 Ohms |
| Biding Posts | Metal Push |
| Cabinet Finish | Satin Black |
| Grill | Black Magnetic |
| Wall Mount | Included |
| Height | 5-15/16 |
| Width | 57 |
| Depth | 3-7/16 |
| Net Weight | 33.51 Ibs |
