Vertex III Soundbar

Vertex III SB-VJ41S 3-Channel Passive Soundbar

ELAC’s Vertex III passive soundbars leverage technologies from our award winning Vela series of loudspeakers. Our legendary JET AMT technology paired with our Crystal Cone bass drivers delivers a sonic experience normally found on premium bookshelf speakers.

Slim Elegant Design

Vertex III offers the excitement of a premium speaker system in a zero footprint design that looks as good as it sounds.

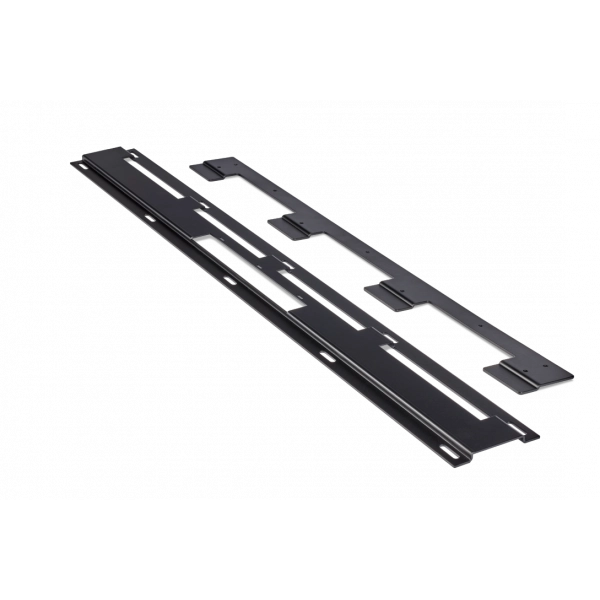

Adjustable Bracket

After wall mounting, the design of the bracket facilitates a 2" left and right adjustment, allowing the installed to easily enter the soundbar to the television.

JET 5 Tweeter

Engineered and designed in Keil, Germany, the JET 5 Air Motion Transformer tweeter offers a wide frequency response (Up to 50kHz), low distortion, and remarkable clarity in reproducing the high-frequency spectrum, contributing to a more immersive and detailed audio experience for listeners.

Aluminum Sandwich Woofer

This specialized construction brings forth a myriad of benefits, starting with its rigidity and lightweight nature. By leveraging the inherent qualities of aluminum, these woofers effectively minimize unwanted resonances and distortions, ensuring a remarkably clear and accurate sound reproduction.

Vertex III

When only the finest will do

With our soundbars, the performance of your favorite movies and music is enhanced with premium audio. The dedicated center speaker ensures that dialogue from TV shows or movies will be heard loud and clear while left/right channels deliver a powerful experience to give you an immersive feeling when listening.

Bracket

Adjustable

After wall mounting, the design of the bracket facilitates a 2" left and right adjustment, allowing the installed to easily enter the soundbar to the television.

AS Technology

Crystal Membrane

The The eye-catching surface of the crystal membrane is more than just an attractive design feature.

Increased stiffness through crystal shape of aluminum cone
Extended frequency range (XR), smooth roll-off
Excellent large signal behaviour
Minimized VAS, (lot of bass out of small cabinets)

JET Technology

JET 5

Air Motion Transformer principle

Linear Frequency response > 50 kHz
Extended lower frequency range
Efficiency 92 dB / W / m
Improved signal accuracy

The inimitable JET tweeter

JET 5

ELAC’s JET 5 tweeter is used throughout our loudspeaker range. This high-frequency driver enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a distinctly wider frequency range than conventional dome tweeters. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.

Speaker Type	Passive Radiator
Tweeter	JET Tweeter x 3
Woofer	4
Frequency Response	65Hz - 35000Hz
Crossover Frequency	2800Hz
Sensitivity	86db @ 2.83 v/1m
Max Power Input	100 Watts
Nominal Impedance	6 Ohms
Biding Posts	Metal Push
Cabinet Finish	Satin Black
Grill	Black Magnetic
Wall Mount	Included
Height	5-15/16
Width	48-5/16
Depth	3-7/16
Net Weight	29.98 Ibs

Vertex III Soundbar SBVJ41 Sales Sheet Version: 1.0.0 (English) Download

Vertex III Soundbar SBVJ41 Owners Manual Version: 1.0.0 (English) Download
